Deploying a Juju Cluster on Brightbox Cloud

Juju is described as a state-of-the-art, open source, universal model for service oriented architecture and service oriented deployments.

It takes the configuration scripts written in other tools and wraps them into a charm which can be deployed either with the Juju CLI tool or its GUI interface.

And it’s really easy to run up a cluster to play with on Brightbox Cloud.

Install

In the Brightbox Platforms repository on GitHub there is a juju directory that will build a Juju cluster automatically.

So once you have the Brightbox CLI installed and SSH working, then clone the repository.

git clone https://github.com/brightbox/brightbox-platforms.git

Change into the Juju directory

cd juju

and run the cluster build script

./build-cluster

This will build a Juju management station running the GUI and a single 4gb SSD cloud server to be managed by it.


Building Juju cluster from trusty base image img-548oh
Juju Cluster #1 security group id is grp-ytzon
Building Juju Cluster #1 Management Jumpstation
Creating a 512mb.ssd (typ-1j3zh) server with image ubuntu-trusty-14.04-amd64-server (img-548oh) in groups grp-ytzon with 0.82k of user data

 id         status    type       zone   creat...  image_id  cloud...  name
-------------------------------------------------------------------------------
 srv-z0iwb  creating  512mb.ssd  gb1-a  2015-...  img-5...            Juju ...
-------------------------------------------------------------------------------

Waiting for server srv-z0iwb to complete build.......
Mapping cip-h9v3l to interface int-nxdiz on srv-z0iwb

 id         status  public_ip      destination  reverse_dns               name
-------------------------------------------------------------------------------
 cip-h9v3l  mapped  109.107.35.57  srv-z0iwb    cip-109-107-35-57.gb1...
-------------------------------------------------------------------------------

 id         status  public_ip      destination  reverse_dns     name
-------------------------------------------------------------------------------
 cip-h9v3l  mapped  109.107.35.57  srv-z0iwb    cip-109-107...  Juju Cluste...
-------------------------------------------------------------------------------

Waiting for ssh logon for ubuntu@cip-h9v3l.gb1.brightbox.com.........
Bootstrapping Juju GUI
Bootstrapping environment "manual"
Starting new instance for initial state server
Installing Juju agent on bootstrap instance
Logging to /var/log/cloud-init-output.log on remote host
Running apt-get update
Installing package: curl
Installing package: cpu-checker
Installing package: bridge-utils
Installing package: rsyslog-gnutls
Installing package: cloud-utils
Installing package: cloud-image-utils
Fetching tools: curl -sSfw 'tools from %{url_effective} downloaded: HTTP %{http_code}; time %{time_total}s; size %{size_download} bytes; speed %{speed_download} bytes/s ' --retry 10 -o $bin/tools.tar.gz <[https://streams.canonical.com/juju/tools/releases/juju-1.22.6-trusty-amd64.tgz]>
Bootstrapping Juju machine agent
Starting Juju machine agent (jujud-machine-0)
Bootstrap complete
Added charm "cs:trusty/juju-gui-38" to the environment.
Building cluster service machines
Creating a 4gb.ssd (typ-sdipw) server with image ubuntu-trusty-14.04-amd64-server (img-548oh) in groups grp-ytzon with 0.00k of user data

 id         status    type     zone   creat...  image_id   cloud...  name
-------------------------------------------------------------------------------
 srv-y3z8f  creating  4gb.ssd  gb1-a  2015-...  img-548oh            Juju C...
-------------------------------------------------------------------------------

Waiting for server srv-z0iwb to complete build
Waiting for server srv-y3z8f to complete build........
Adding machines to cluster...
srv-y3z8f
Waiting for ssh logon for ubuntu@cip-h9v3l.gb1.brightbox.com..
Logging to /var/log/cloud-init-output.log on remote host
Running apt-get update
Installing package: curl
Installing package: cpu-checker
Installing package: bridge-utils
Installing package: rsyslog-gnutls
Installing package: cloud-utils
Installing package: cloud-image-utils
Fetching tools: curl -sSfw 'tools from %{url_effective} downloaded: HTTP %{http_code}; time %{time_total}s; size %{size_download} bytes; speed %{speed_download} bytes/s ' --noproxy "*" --insecure -o $bin/tools.tar.gz <[https://srv-z0iwb.gb1.brightbox.com:17070/tools/1.22.6-trusty-amd64]>
Starting Juju machine agent (jujud-machine-1)
created machine 1

Juju bootstrapping complete.

Juju GUI will shortly be available at:

https://cip-h9v3l.gb1.brightbox.com/

The username is "admin" and the password, taken from
~/.juju/environments/manual.jenv on cip-h9v3l.gb1.brightbox.com is:

password: 52029095a7947f349f392fd34455ff70

Add additional service machines from the management server by creating
them with the Brightbox CLI or the management GUI and then add them into
the cluster by running:

juju add-machine srv-xxxxx

Point a browser at the url given and login with the username and password shown. You’re then ready to deploy a charm!

Deploy a charm

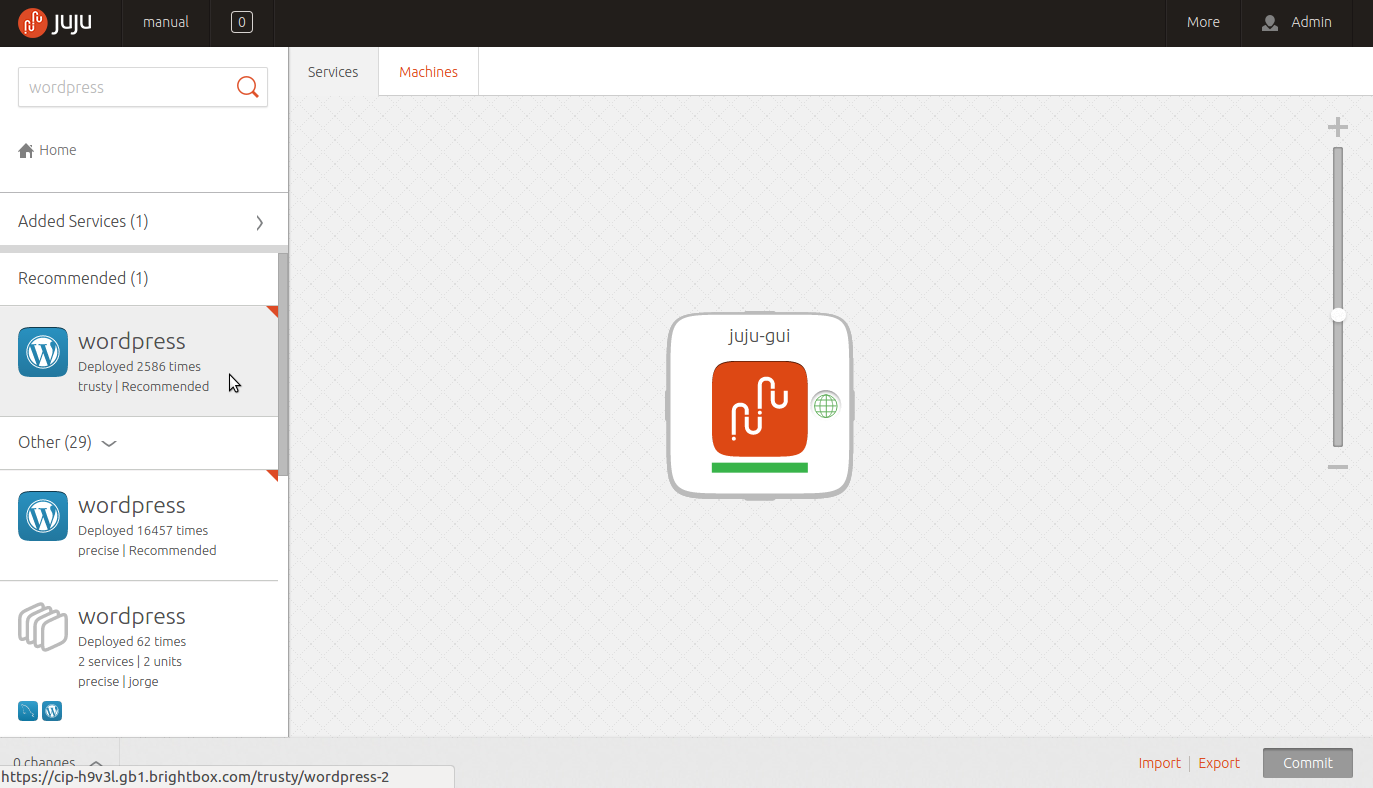

Once you have the GUI working, you can deploy ‘charms’ by dragging them from the search bar on the left to the main canvas.

Let’s run through a simple Wordpress/MySQL combination to get the idea. First find the wordpress and mysql charms using the search tool on the left and drag them to the canvas.

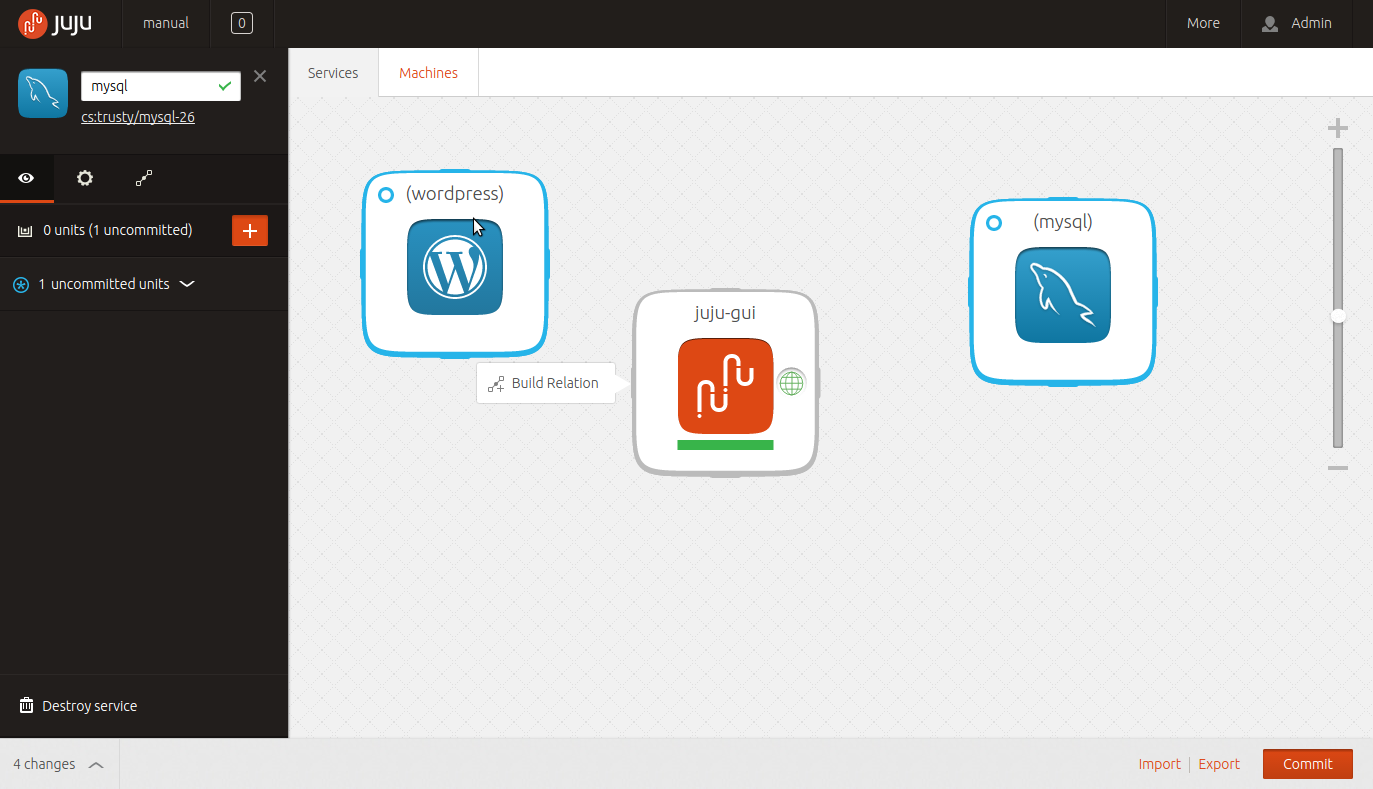

Click on the wordpress icon to reveal the build relation menu

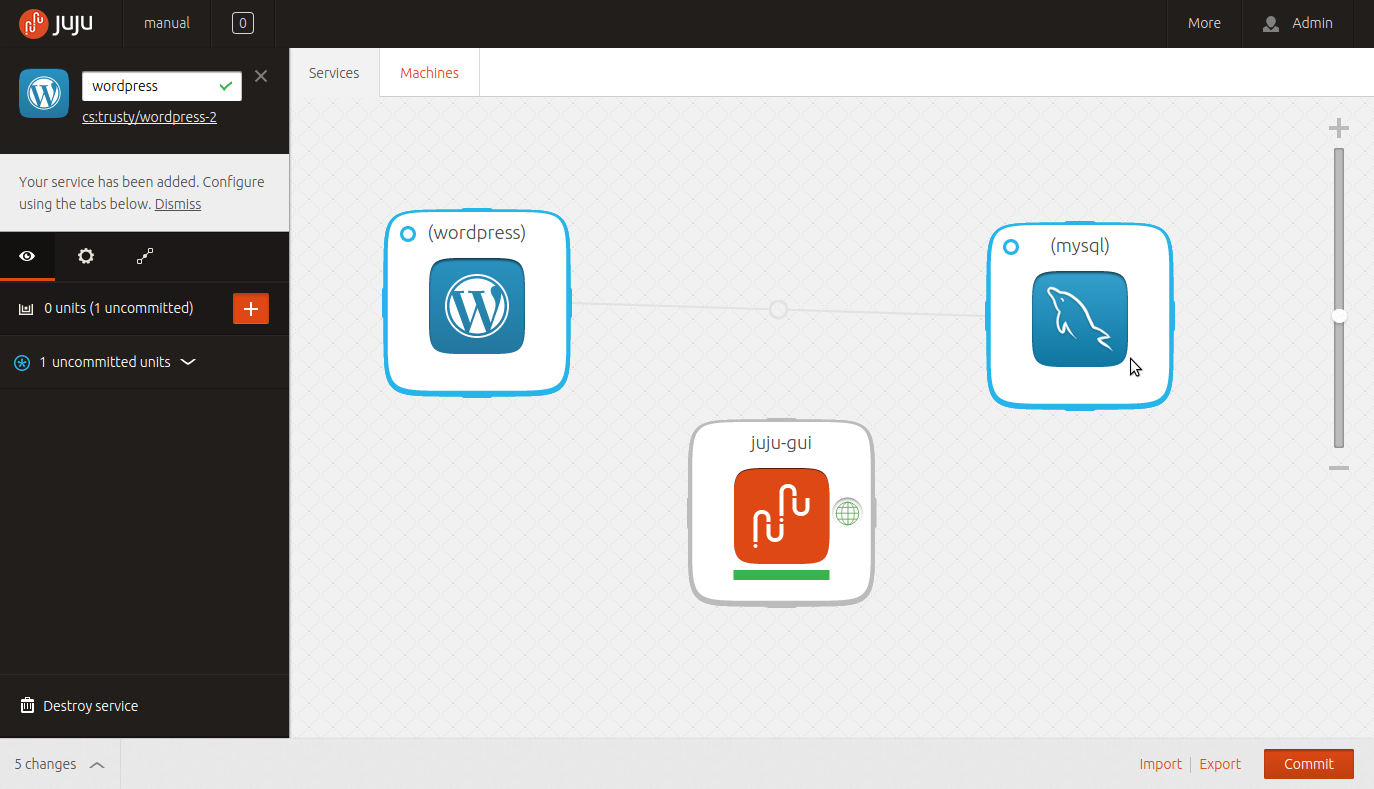

drag across to the wordpress icon to create a relationship.

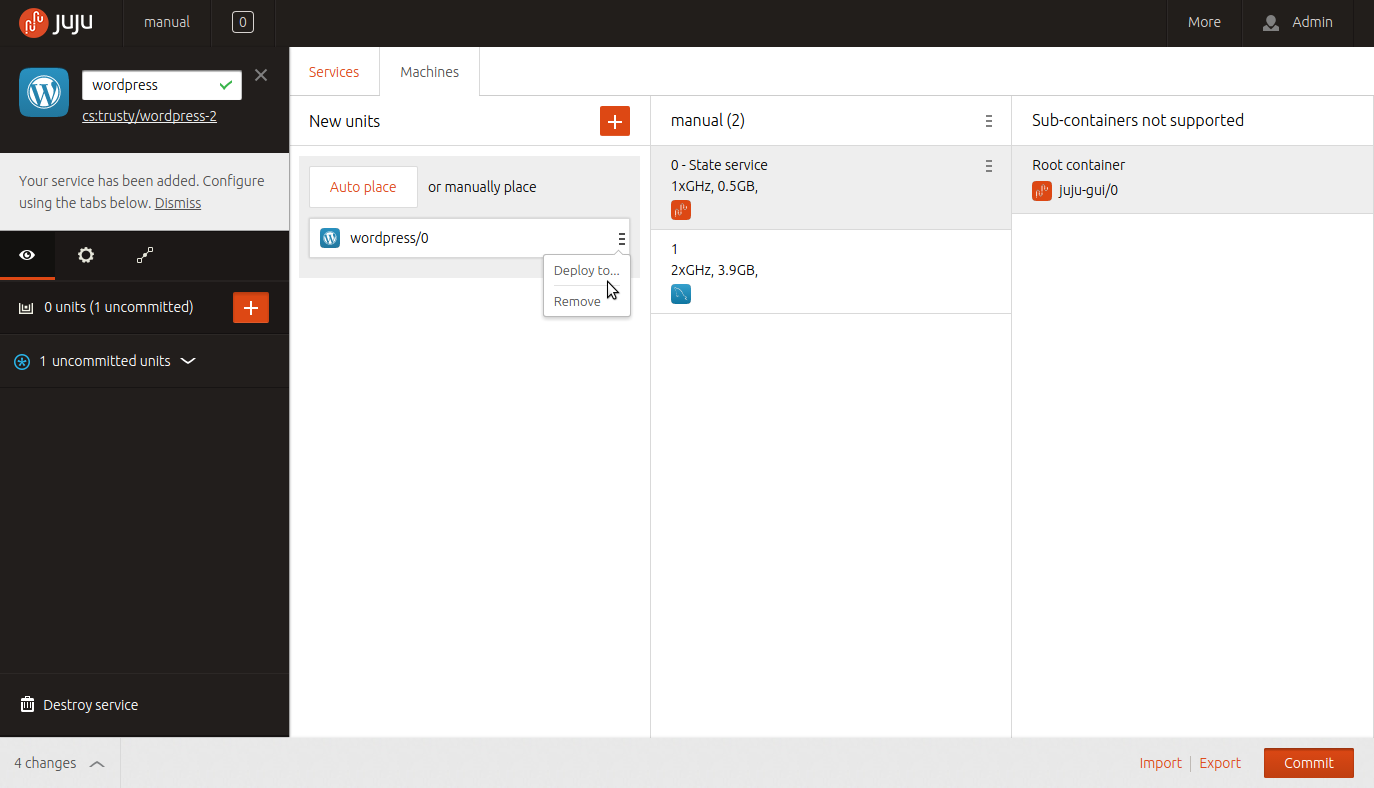

Next click on the machines tab and for each ‘new unit’ on the left hand side select a machine and container that unit should be deployed to - in this case machine #1.

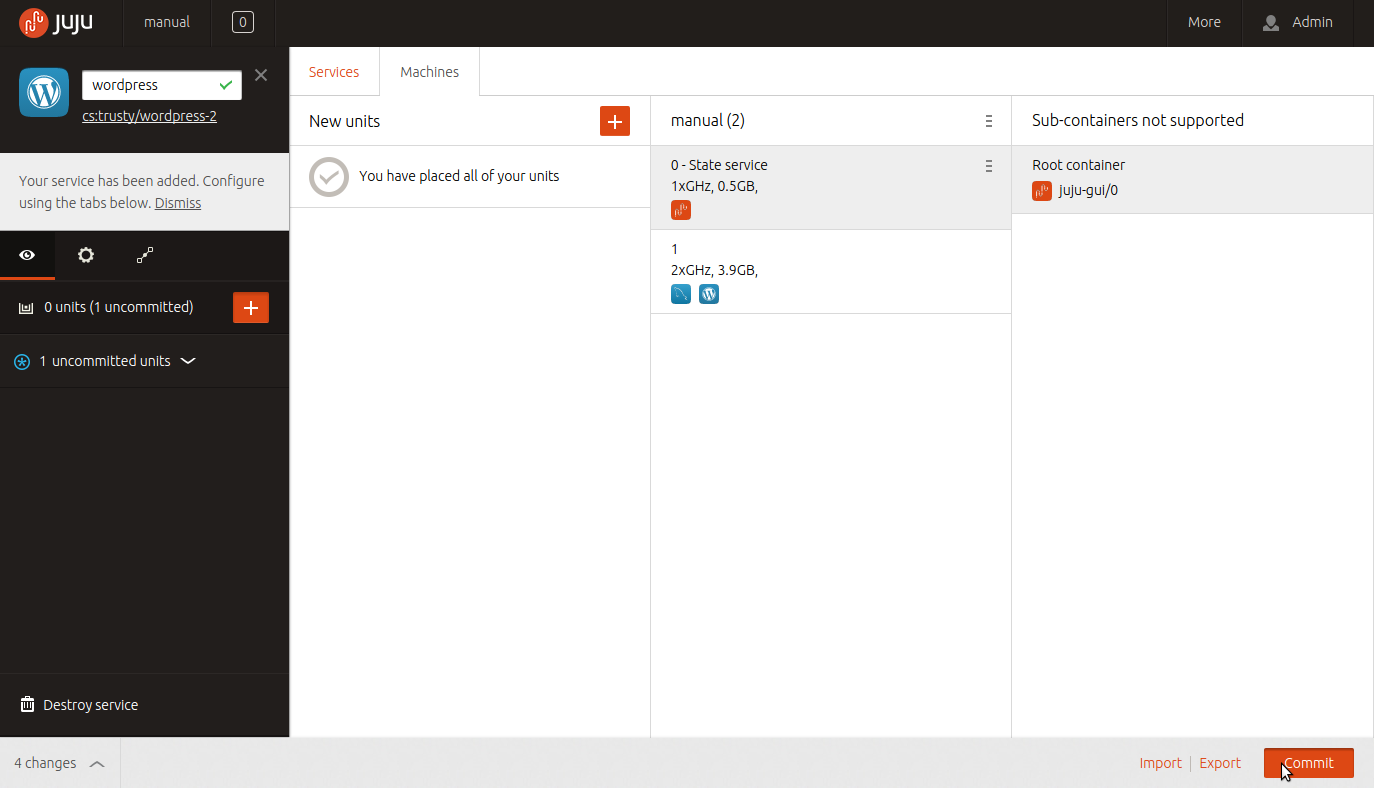

once you’ve placed all the units on machines, hit the Commit button

Go back to the canvas screen and wait for the icon indicators to go green to show they have installed and configured. You’re then ready to use Wordpress.

If you’re not already a Brightbox customer you can get signed up in 2 minutes. We’ll even apply an automatic £20 credit to get you started playing with your very own Juju Cluster.
